Corrosorber®

Product Description

Corrosorber® absorbs hydrogen sulfide, volatile mercaptans, and other corrosive gases, removing them from the atmosphere and eliminating the cause of some damage to metals. The chemicals contained in Corrosorber® have been treated to change color from off-white to black as corrosive gases are trapped. Corrosorber® will not interfere with VpCI® protection.

Unlike other products on the market, Corrosorber® will not release the corrosive gases back into the atmosphere. The reaction is irreversible, eliminating any concern about post-contamination.

Packaging and Storage

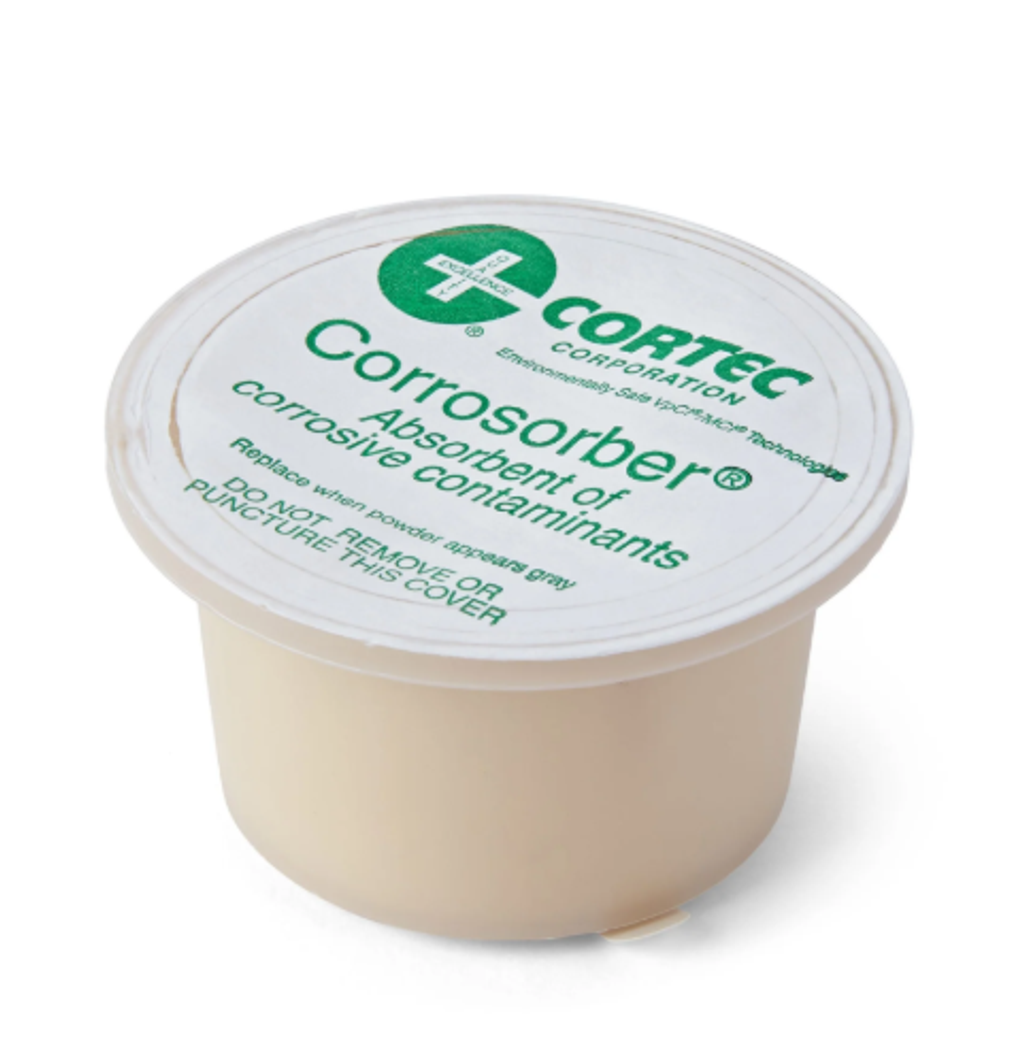

Corrosorbers are plastic selfstick devices covered with a breathable membrane. Diameter: 2.3” (5.8 cm). Height: 1.27” (3.2 cm). Individually wrapped and shipped 10 cups per carton.

To ensure best product performance, store in original packaging, indoors, and out of direct sunlight at 40-100 °F (4- 38 °C).

Shelf life: 2 years

Features

• Scavenges corrosive gases
• Safe to handle
• Changes color as it is used up
• Irreversible reaction, no post-contamination
• Economical to use
• Quick and easy to install
• Does not interfere with electrical, optical, or mechanical surface performance
• Protects during operation and shutdown
• Compact, space-saving, unobtrusive device

Typical Applications

• Petrochemical plants
• Water treatment plants
• Plants handling sulfurous crude oil
• atural gas handling operations
• Pulp and paper plants
• Livestock and agricultural facilities
• Operating, packaged, and stored electrical equipment
• Marine navigation and communication equipment
• Aerospace electrical controls
• Electric motors, switching equipment
• Fuse boxes, power boxes
• Medical equipment
• Electrical wireways, terminal boxes
• Scientific and measuring instruments
• Telecommunications equipment
• Remote electronics devices

Application

Install the Corrosorber® at the earliest possible time, before shipping or receiving if possible. Simply select a space where corrosion protection would be useful, and attach using selfadhesive backing. Replace cup as soon as the container appears gray.

In-use temperature: 32-140 °F (0-60 °C).

Typical Conditions:

•  10ft3 (283.2 L) enclosure
• 1 ppm of hydrogen sulfide
• 1 air change on a daily basis
