CorShield®VpCI®-146 Creped Paper

Product Description

CorShield® VpCI®-146 Creped Paper is the premium corrosion inhibiting paper in the industry. Our patented Vapor phase Corrosion Inhibiting (VpCI) technology has revolutionized the way metals are protected in an enclosed package. CorShield® Creped Paper provides superior corrosion protection for multiple metals, both ferrous and non-ferrous.

CorShield® Creped Paper also offers cushioning effect to physically protect delicate parts. CorShield® Creped Paper is environmentally safe, non-toxic, biodegradable, and doesn’t contain any nitrites, phosphates, or silicates. It is made from the highest quality neutral kraft paper without any chemical bleaching. CorShield® Creped Paper is fully recyclable/repulpable.

Typical Applications

CorShield Creped Paper can be used to protect products for storage and shipment in a variety of ways: single item packaging, interleaving, end closures for shipping tubes, insert strips for recessed areas in large packages, and as sheet liners or separators between products. It is particularly suitable for bearing industry as CorShield Creped Paper offers cushioning, corrosion protection and “pooling” effect for RP oils.

Some typical applications:

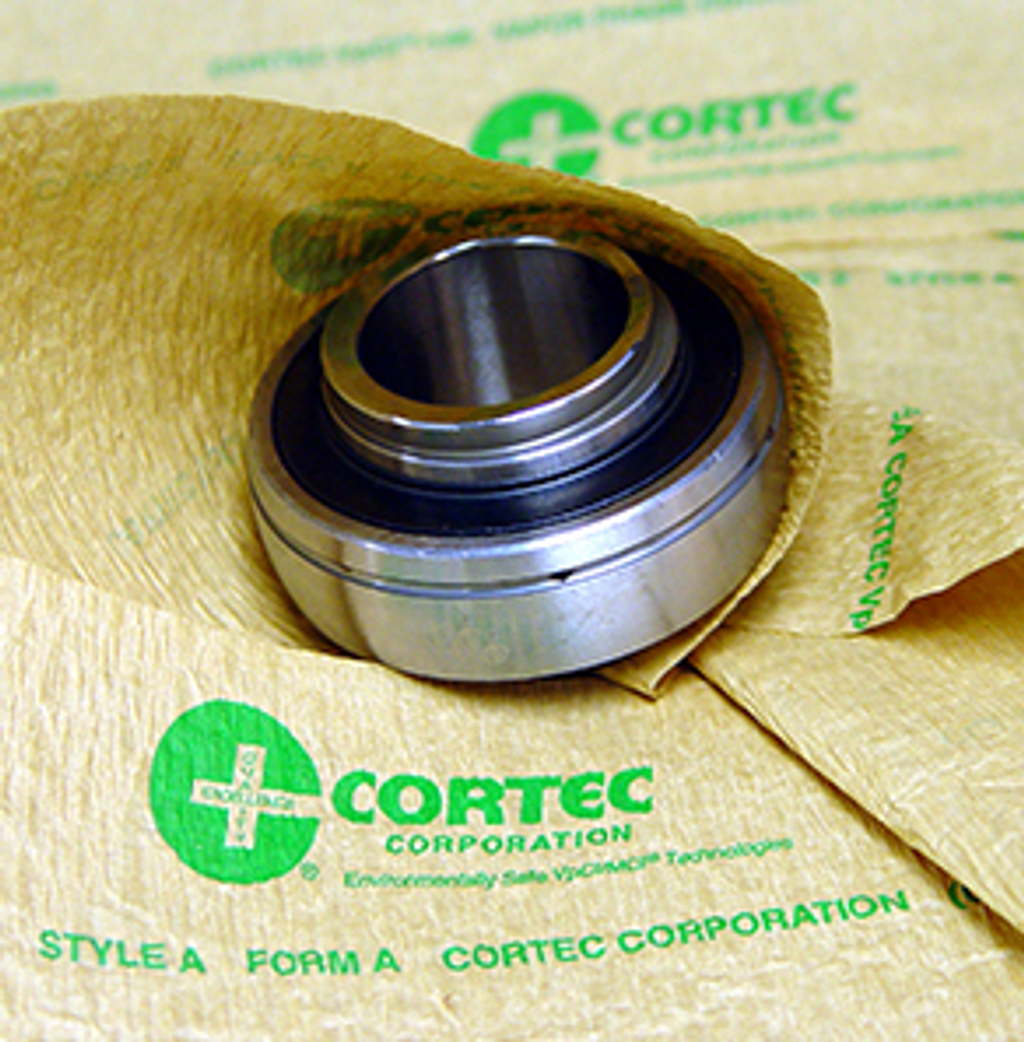

• Bearing protection: during storage and shipment
• Metal producing: coils, wire reels, plate, bar, etc
• Metal forging and die casting: raw and machined forgings and castings
• Metalworking: stamping, sheet metal work, springs, bearings, fasteners, tube, pipe, nails, etc
• Finished products: engines, machinery, equipment, tools, hardware, appliances, instruments, motors, etc
• Electrical and electronic components, controls, etc

Features

• One product for all ferrous and non-ferrous metals
• Non-toxic. Contains no nitrites, phosphates, chromates, or other heavy metals
• Fully recyclable, repulpable
• Effective against aggressive environments including humidity, SO2, H2S, and galvanic corrosion from dissimilar metals
• Conforms to military specifications MIL-PRF-3420
• Protective layer does not need to be removed prior to further surface finishing or coating application
• Protects dry or oiled metals during storage, transit, and overseas shipment
• Premium natural grade paper eliminates package contamination
• Combines corrosion protection and packaging into one step
• Tested by Zagreb, Croatia, Department of Health, for use on food articles.

Metals Protected

• Carbon Steel
• Stainless Steel
• Galvanized Steel
• Cast Iron
• Aluminum Alloys
• Copper
• Brass (≤30% Zn)
• Solder

Method of Application

Products should be packaged as soon after cleaning as possible, but completely dried of residual water. Keep the VpCI paper as close to the surface of the product as practical, leaving no barrier between the VpCI paper and the metal surface to be protected.

Standard Construction: Neutral natural creped paper coated with VpCI material. The paper contains printed logo on reverse side to the VpCI coating.

Packaging and Storage

Standard sizes: 48” x 56” sheets (1.22m x 1.42m) Custom sizes and constructions available upon request Store in sealed packaging in dry and cool envrionment Shelf life 24 months
